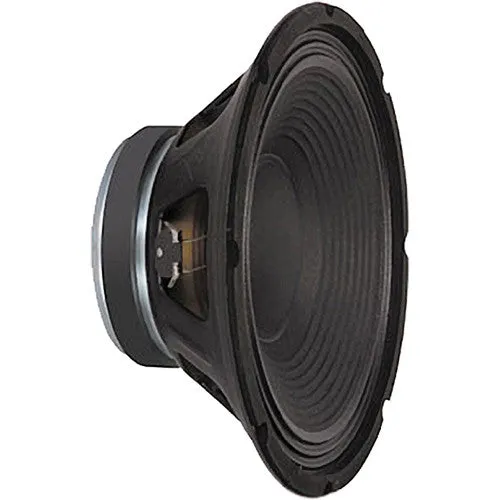

Peavey Pro 1200 Overview

The Peavey Sheffield Pro Series 1200 Speaker comes with high-quality, high-efficiency drivers that are suitable for medium power subwoofer and full-range enclosure applications (up to 400W program).

The Pro 1200 is a great performer as the low end of a 2-way enclosure or a very compact, moderate output subwoofer. It features smooth frequency response combined with amazing bass response, delivering high sound quality.

The Pro 1200 Loudspeaker’s drivers are suitable for a wide range of sound reinforcement, high level playback, musical instrument, subwoofer, and monitor applications.

You can restore top performance to your aging instrument amplifiers and speaker systems with this high quality loudspeaker. The 12” Loudspeaker is a strong performer in multi-way systems and can be crossed over as high as 4 kHz.

Peavey Pro 1200 Specs

Size	12.0" (30.5 cm)
Impedance	8 Ω
Power Capacity	1,000 W peak 500 W program 250 W continuous
Sensitivity	96.3 dB, 1 W / 1 m
Frequency Range	50 Hz to 4 kHz
Cone Material	Impregnated cellulose
Voice Coil Diameter	2.50" (6.35 cm)
Material	Voice Coil: Two layers, thermally bonded Copper wire Kapton former Nomex stiffener Solderless diffusion welded OFHC copper leads
DC Resistance	5.21 Ω
Surface Area of Cone (Sd)	0.052 m²
Efficiency	Voice Coil & Magnet System: 13.89 T/M
Resonance	Free Air: 53.2 Hz
Volume	0.07 m³
Force	Restorative: 179.2 µM/N
Mass	Total: 1.76 oz (49.96 g)
Characteristics	Resonance Characteristics of Mechanical Factors: 6.75 Resonance Characteristics of Electrical Factors: 0.451 Resonance Characteristics of Electrical & Mechanical Factors: 0.423
Distance	Distance the cone can move in one direction: 0.14" (0.36 cm)
Inductance	0.33 mH
SPL	96.3 dB, 1 W / 1 m
Efficiency	Electrical to Acoustical Conversion Efficiency: 2.25 %
Air Displacement	22.3 cu.in. (365.0 ml)
Volume Displaced	121 cu.in (1,983 ml)
Continuous Power	Maximum: 500 Wpgm
Weight	11 lb (5 kg)
