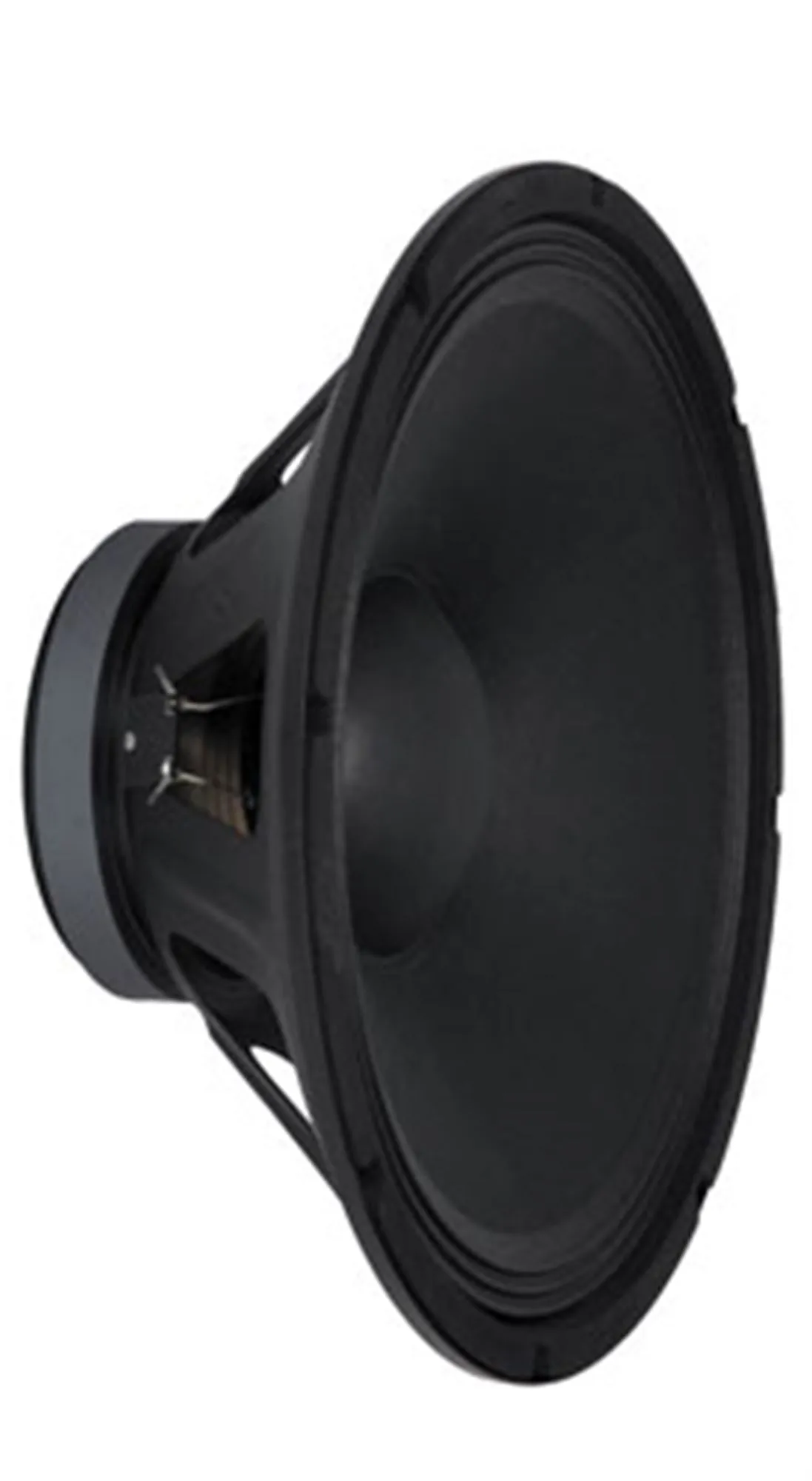

Pro Series 10 Speaker
PRO 10

• Impedance: 8 Ohms
• Power capacity: 800 W Peak 400 W Program 200 W Continuous
• Sensitivity: 94.3 dB / 1 W 1 m
• Usable freq. range: 50 Hz ~ 4 kHz
• Cone: Kevlar® impregnated cellulose
• Voice coil diameter: 2.5" / 63.5 mm
• Voice coil material: 2 layers, thermally bonded copper wire, Kapton® former, Nomex® stiffener
• Net weight lb. / kg: 9.5 lbs. / 4.3 kg
• Znom (ohms) 8
• Revc (ohms) 6.00
• Sd (Square Meters) 0.035
• BL (T/M) 14.33
• Fo (Hz) 67.7
• Vas (liters) 25.1
• Cms (uM/N) 150.0
• Mms (gm) 36.90
• Qms 2.85
• Qes 0.456
• Qts 0.395
• Xmax 2.5
• Le (mH) 0.72
• SPL (1W 1m) 94.3
• No (%) 1.70%
• Vd (cu. in. / ml) 10.6 / 173
• Pmax (Watts pgm.) 400
• Disp (cu. in. / ml) 95 / 1564
• 10"
• Weight Unpacked: 9.26 lb(4.2 kg)
• Weight Packed: 11.02 lb(5 kg)
• Width Packed: 11.125"(28.2575 cm)
• Height Packed: 12.125"(30.7975 cm)
• Depth Packed: 6.325"(16.0655 cm)
