Avid 9940-29645-00 Overview

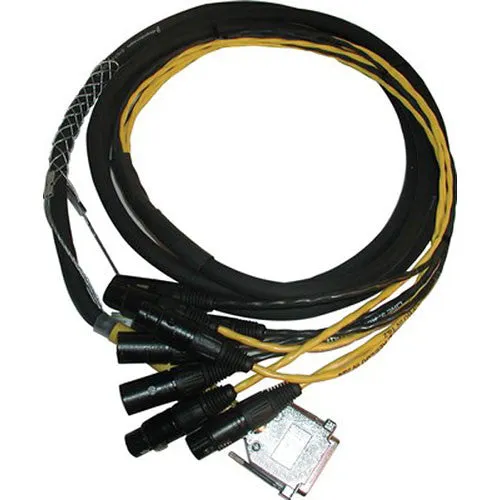

The DB25-XLR M F AES/EBU DigiSnake (12-Foot) from Avid is a 12-foot AES/EBU input/output snake that is used to connect external equipment to an Avid HD peripheral (such as the 192 I/O or 96 I/O).
The snake features a DB25 connector to 4 XLR female and 4 XLR male connectors, and is color coded specifically for Pro Tools systems.
DB25 to to 4 XLR male and 4 XLR female
Below 192kHz, AES/EBU carries 2 channels per line, so this snake transmits 8 out and 8 in channels of digital audio via the 8 XLR connectors
At 192kHz sample rate, the 192 I/O is using dual wire transmission and this AES snake transmits 4 out and 4 in at 192kHz
Comprised of 110Ω "digital grade" cable
The 4 XLRF wire jackets are yellow, the 4 XLRM jackets are black, all with appropriate labeling
Avid 9940-29645-00 Specs
| Length | 12ft (3.7m) |
| Connectors | 1 x DB25 4 x XLR Female 4 x XLR Male |
Packaging Info
| Package Weight | 2.35 lb |
| Box Dimensions (LxWxH) | 10.5 x 10.4 x 4.3" |
